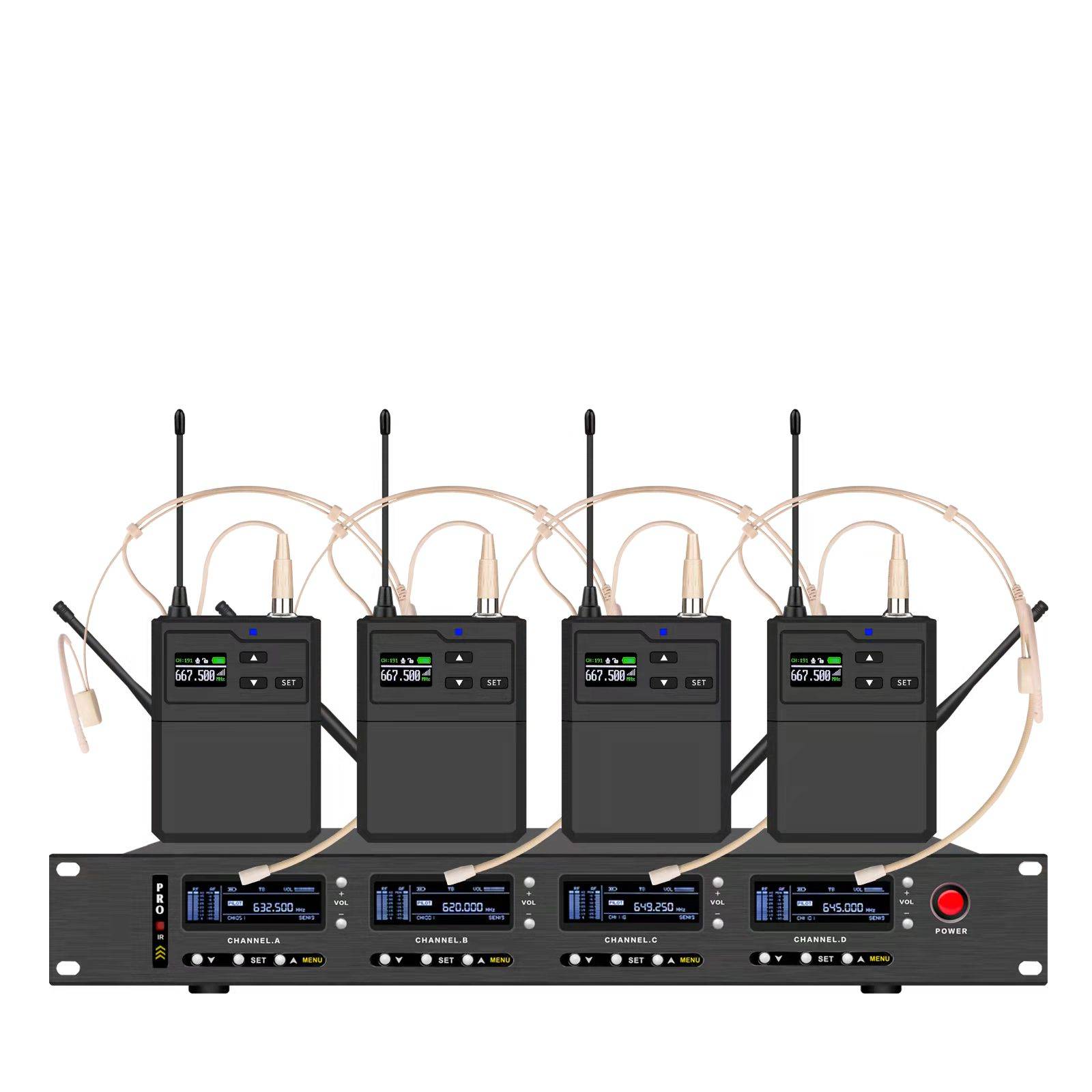

Mst-6400 True Diversity one drag four skin color headset

Receiver technical parameters:

Carrier band: UHF640~900MHz (optional)

Number of channels: four channels

Modulation mode: FM

Sensitivity: input 6dBv, S/N>60Db

Band width: 30MHz

Offset: ±45KHz

Comprehensive S/N ratio: >105dB

Comprehensive T.H.D: < 0.7% @ 1 KHZ

Comprehensive frequency response: 45Hz~18KHZ ±3dB

Power supply: DC 12-16 v 10W

Output socket: XLR parallel and 6.3 non parallel socket

 working distance :(in open environment) about 100-150 meters



Technical parameters:

Carrier band: UHF640~900MHz (optional)

Oscillation mode: PLL phase locking frequency synthesis

Harmonic emission: < -65dbm

Offset: ±45KHz

Frequency response: 45Hz~18KHZ ±3dB

Band width: 120MHz

Voice head: capacitive

RF power output: 15MW

Battery: AA * 2

Current consumption :<90mA

Continuous working time :8 hours
